When replacing an ECM (Electronic Control Module) in a Caterpillar engine, it is crucial to copy the existing ECM configuration and transfer it to the new ECM. This ensures that the engine retains its original settings and operates correctly. In this guide, we will walk you through the entire process using CAT ET (Caterpillar Electronic Technician). Use one of our Diesel Diagnostic Laptop to preform these below:

Why Copy ECM Configuration?

  • Ensures the new ECM retains original engine parameters.

  • Avoids manual reprogramming and potential errors.

  • Reduces downtime and keeps the engine running efficiently.

Step-by-Step Guide to Copy and Transfer ECM Configuration

Step 1: Connect to the Original ECM

  1. Open CAT ET on your diagnostic laptop.

  2. Connect the Nexiq USB Link 3 Or Caterpillar Communication Adapter (or your compatible adapter) to the ECM.

  3. Turn the vehicle ignition ON (engine OFF).

  4. Ensure that CAT ET detects the ECM and establishes communication.

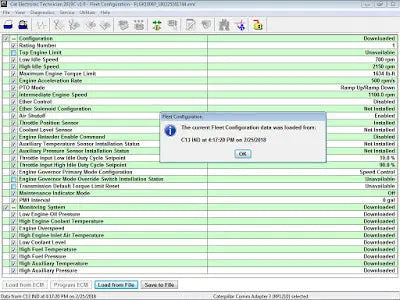

Step 2: Copy ECM Configuration

  1. In CAT ET, navigate to "Service" > "Copy Configuration".

  2. Click "Start" to begin copying the ECM configuration.

  3. Save the configuration file as a .ecfg file on your laptop.

  4. IMPORTANT: Make a backup copy of the saved configuration file before proceeding. This ensures you can restore the original settings if needed.

  5. Verify that the configuration file has been saved successfully.

Step 3: Install the New ECM

  1. Turn off the ignition and disconnect the old ECM.

  2. Physically install the new ECM onto the vehicle or use bench harness.

  3. Reconnect the Nexiq USB Link 3 to the new ECM.

  4. Turn the ignition ON and ensure CAT ET detects the new ECM.

Step 4: Transfer Configuration to the New ECM

  1. In CAT ET, go to "Service" > "ECM Replacement".

  2. Click "Load Configuration" and select the .ecfg file you saved earlier.

  3. Click "Program ECM" to transfer the saved settings to the new ECM.

  4. Wait for the programming process to complete – DO NOT disconnect during this process.

Step 5: Final Verification and Testing

  1. Verify that all engine parameters match the original ECM settings.

  2. Perform a key cycle by turning the ignition OFF for 30 seconds, then back ON.

  3. Check for fault codes and clear any inactive codes in CAT ET.

  4. Start the engine and test all functions to ensure proper operation.

By following this process, you can efficiently replace an ECM without losing any critical settings. This method ensures a seamless transition to the new ECM, preventing unnecessary downtime and keeping your engine running at peak performance.

Disclaimer: This guide is for educational purposes only. We are not responsible for any damages, errors, or inaccuracies that may arise from following these steps. Always verify the accuracy of the procedure with official Caterpillar documentation and consult a professional technician if necessary. Be sure to save any files or configuration before doing any flashing, replacements.
