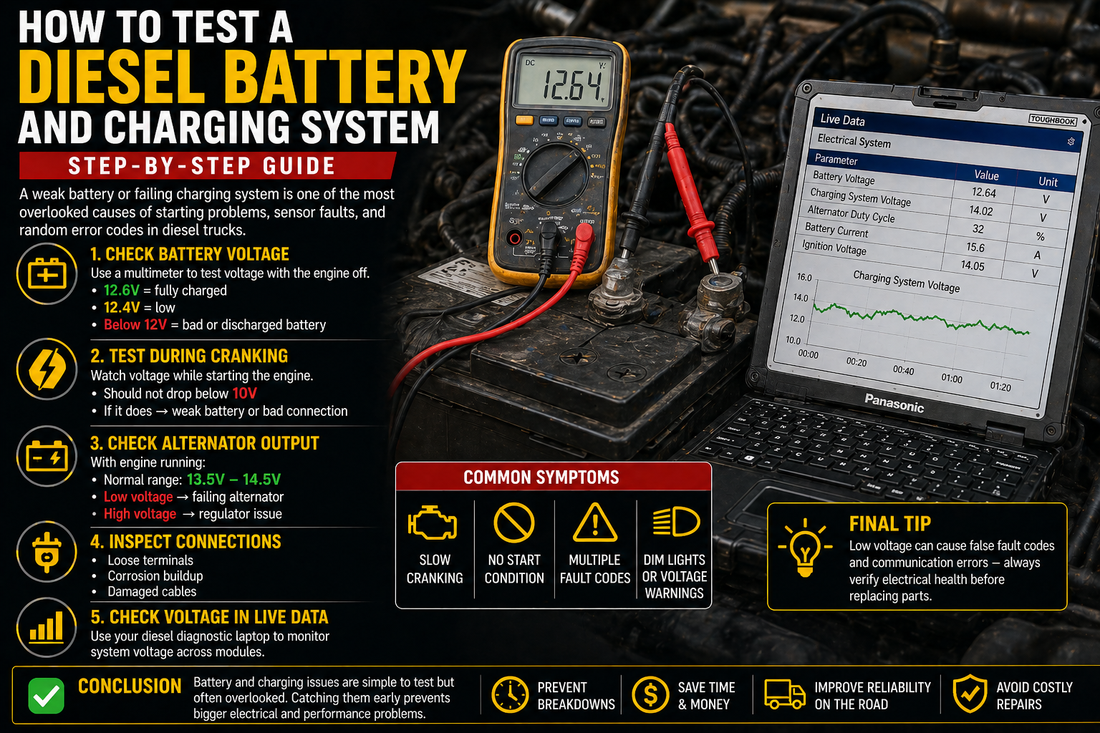

How to Test a Diesel Battery and Charging System (Step-by-Step)

A weak battery or failing charging system is one of the most overlooked causes of starting problems, sensor faults, and random error codes in diesel trucks. Proper testing can prevent breakdowns and unnecessary repairs.

🚨 Common Symptoms

• Slow cranking
• No start condition
• Multiple electrical fault codes
• Dim lights or voltage warnings

🔍 Step 1: Check Battery Voltage

Use a multimeter to test voltage with the engine off.

• 12.6V = fully charged
• 12.4V = low
• Below 12V = bad or discharged battery

⚡ Step 2: Test During Cranking

Watch voltage while starting the engine.

• Should not drop below 10V
• If it does → weak battery or bad connection

🔋 Step 3: Check Alternator Output

With engine running:

• Normal range: 13.5V – 14.5V
• Low voltage → failing alternator
• High voltage → regulator issue

🔌 Step 4: Inspect Connections

• Loose terminals
• Corrosion buildup
• Damaged cables

📊 Step 5: Check Voltage in Live Data

Use your diesel diagnostic laptop to monitor system voltage across modules.

💡 Final Tip

Low voltage can cause false fault codes and communication errors — always verify electrical health before replacing parts.

📌 Conclusion

Battery and charging issues are simple to test but often overlooked. Catching them early prevents bigger electrical and performance problems.
